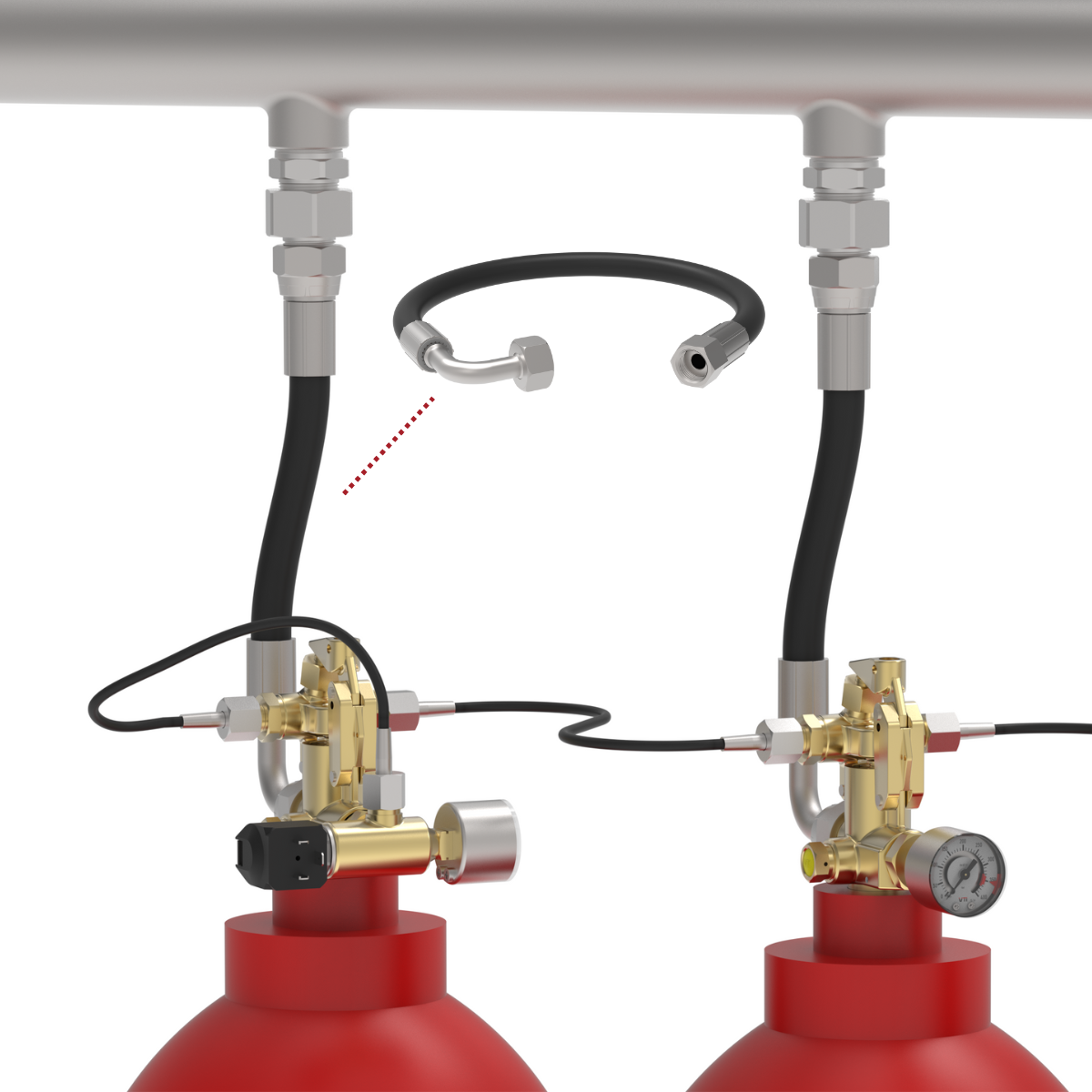

The K304 discharge hose provides a flexible connection between a cylinder valve or pressure regulator with a check valve or manifold.

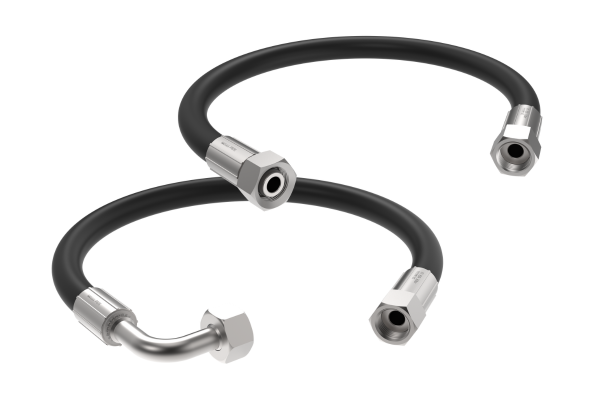

K304 discharge hose
- Medium: CO2, Ar, IG-01, IG-100, IG-55, IG-541
- Length: 300 / 500 / 800 mm
- Straight Version and version with inlet 90° available
- Inlet connection W21,8x1/14“, W24,32x1/14“, M24x1,5 ISO8434-1, M24x1,5 flat sealing
- Outlet connection M24x1,5 ISO8434-1, G3/4“
- Nominal diameter ND 12 mm
- Working pressure 300bar
- Approvals: VDS / CPR – CE, UL is ongoing
