Solenoid valves

Solenoid operated valves.

Options:
external / internal ventilation, thermally controlled glass bulb TPRD, bursting devices, Excess Flow Valve (EFV), 12 V or 24 V solenoid

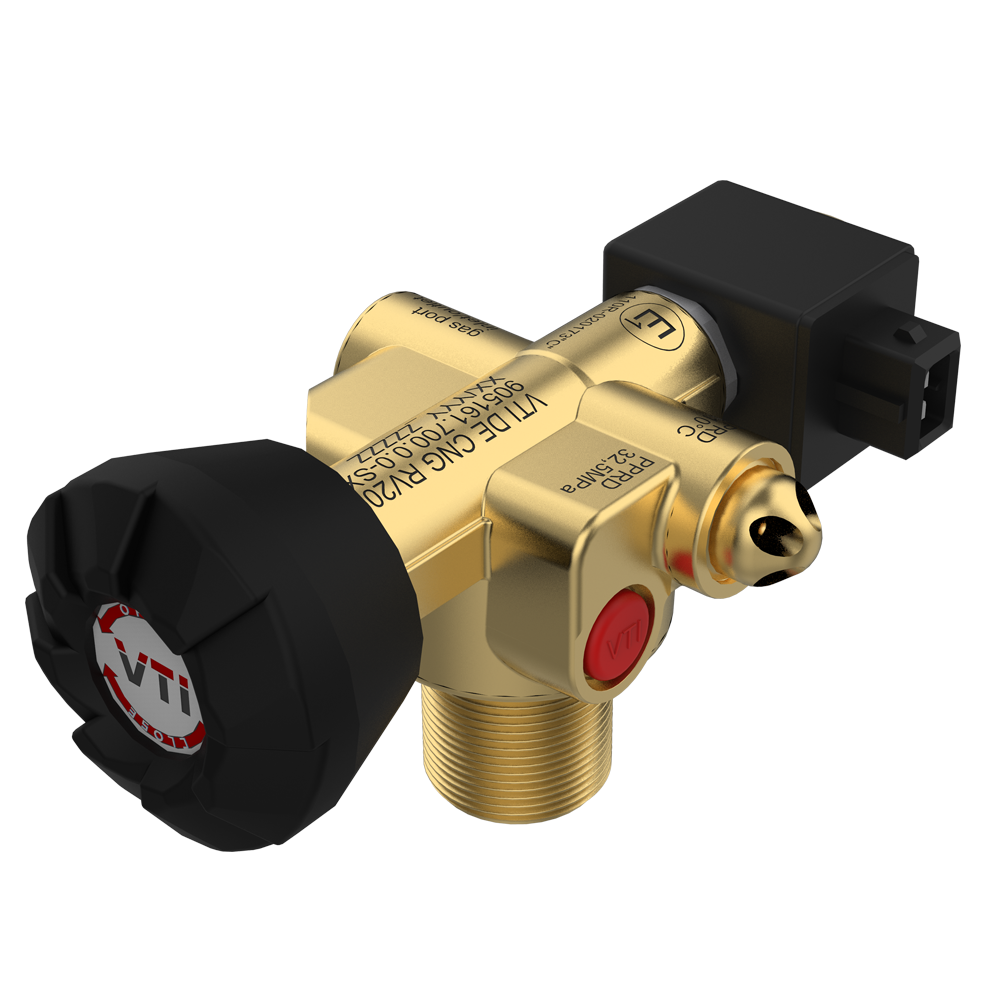

RV200

  • application: light and heavy duty CNG systems
  • available in five different versions for a flexible and quick installation
  • standard equipped with a TPRD with aglass bulb
  • favourable design of the TPRD and PRD – max. working pressure 260 bar, bursting pressure 325 bar
  • safe discharge after activation in case of fire
  • working temperature -40 °C to +85 °C
  • connection thread according to customer request
  • approved in accordance with ECE 110R-03 and ISO 15500
