Quick release valves

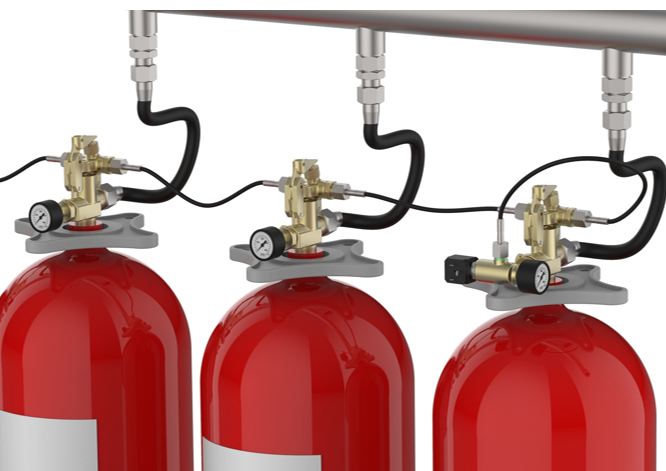

Application in portable and / or stationary extinguishing systems.

Activated by an external impulse the valve provides the entire extinguishing medium immediately.

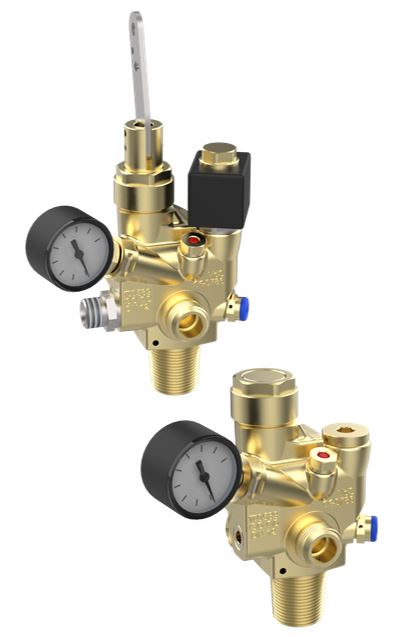

TDQRV - K306 Master / Slave

  • medium: CO2, Ar, IG-01, IG-100, IG-55, IG-541
  • total-discharge function with activation indication
  • inlet thread: 25E according to ISO 11363-1, others on request
  • outlet thread: W21,8x1/14“, W24,32x1/14“, M24x1,5
  • nominal diameter: DN 12
  • working pressure: 300bar
  • bursting device on customer request
  • optional optical pressure control of the extinguishing pipeline
  • non-return valve for connection of pressure switch resp. pressure gauge
  • activation: manual, pneumatical, electrical
  • TPED (BAM) and VDS approval / CPR- CE/ UL – approval in process

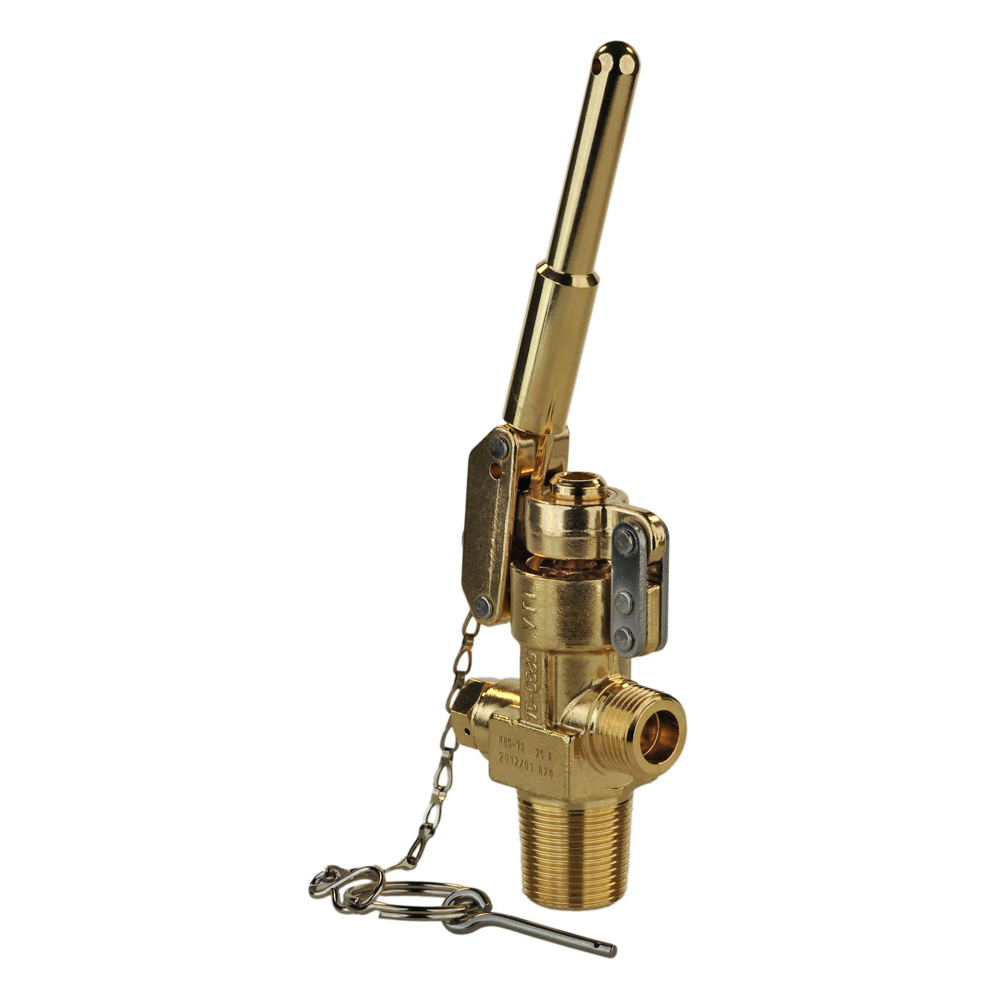

K85-11, K85-12

  • medium: CO2, Ar, FM200, Novec 1230
  • inlet thread: 25E according to ISO 11363-1, others on request
  • outlet thread: W21,8x1/14“
  • nominal diameter: DN 12
  • working pressure: 200 bar
  • bursting device on customer request
  • dip tube thread: M16x1
  • activation: manual (left 11 or right 12 version)
  • TPED (BAM) and VDS approval / CPR- CE/ ATR Typ C

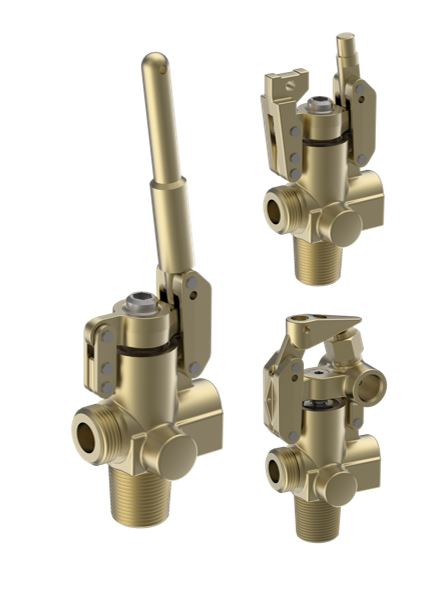

K85-13

  • medium: N2
  • inlet thread: 25E according to ISO 11363-1, others on request
  • outlet thread: W24,32x1/14“
  • nominal diameter DN 12
  • working pressure: 200 bar
  • bursting device on customer request
  • dip tube connection: M16x1
  • connection pneumatic cylinder: G3/8“ IG
  • activation: manal, internal-pneumatical, external-pneumatic (penumatic cylinder)
  • TPED (BAM) and VDS approval / CPR- CE / ATR Typ C

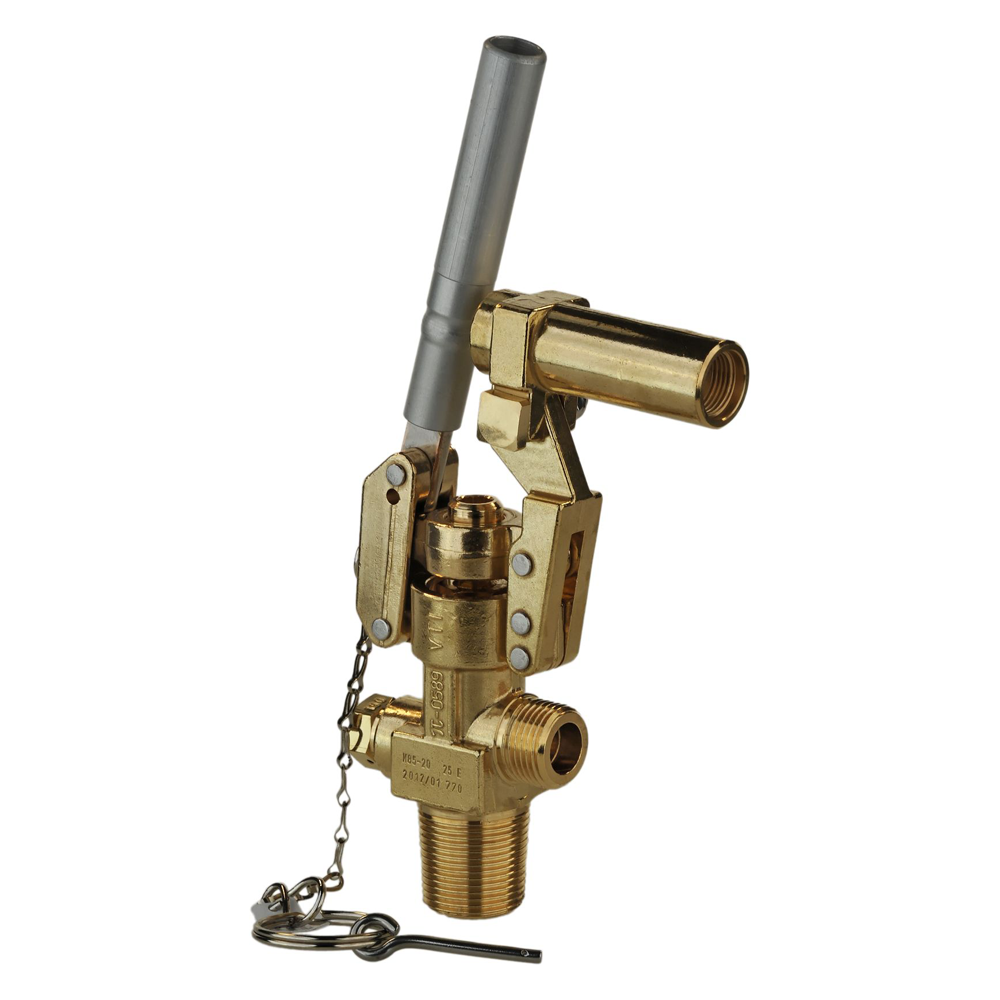

K85-20, K85-21

  • medium: CO2, Ar, Inergen 52.40.08
  • inlet thread: 25E according to ISO 11363-1, others on request
  • outlet connection: W21,8x1/14“
  • nominal diameter: DN 12
  • working pressure: 200 bar
  • bursting device on customer request
  • dip tube thread: M16x1
  • connection pneumatic cylinder: G3/8“ IG
  • activation: manual, external-pneumac (pneumatic cylinder) (left 20 or right 21 version)
  • TPED (BAM) and VDS approval / CPR- CE / ATR Typ C

K85-27

  • medium: Novec, FM200, Deugen N, Pulver N2
  • inlet thread. 25E according to ISO 11363-1 or ¾“ NGT, others on request
  • outlet thread: M26x1,5
  • nominal diameter: DN 16
  • working pressure: 125 bar
  • bursting device on customer request
  • dip tube thread: M20x1,25
  • connection pneumatic cylinder: G3/8“ IG
  • activation: manual, external-pneumatic (pneumatic cylinder)
  • TPED (BAM) approval and VDS /ATR Typ C

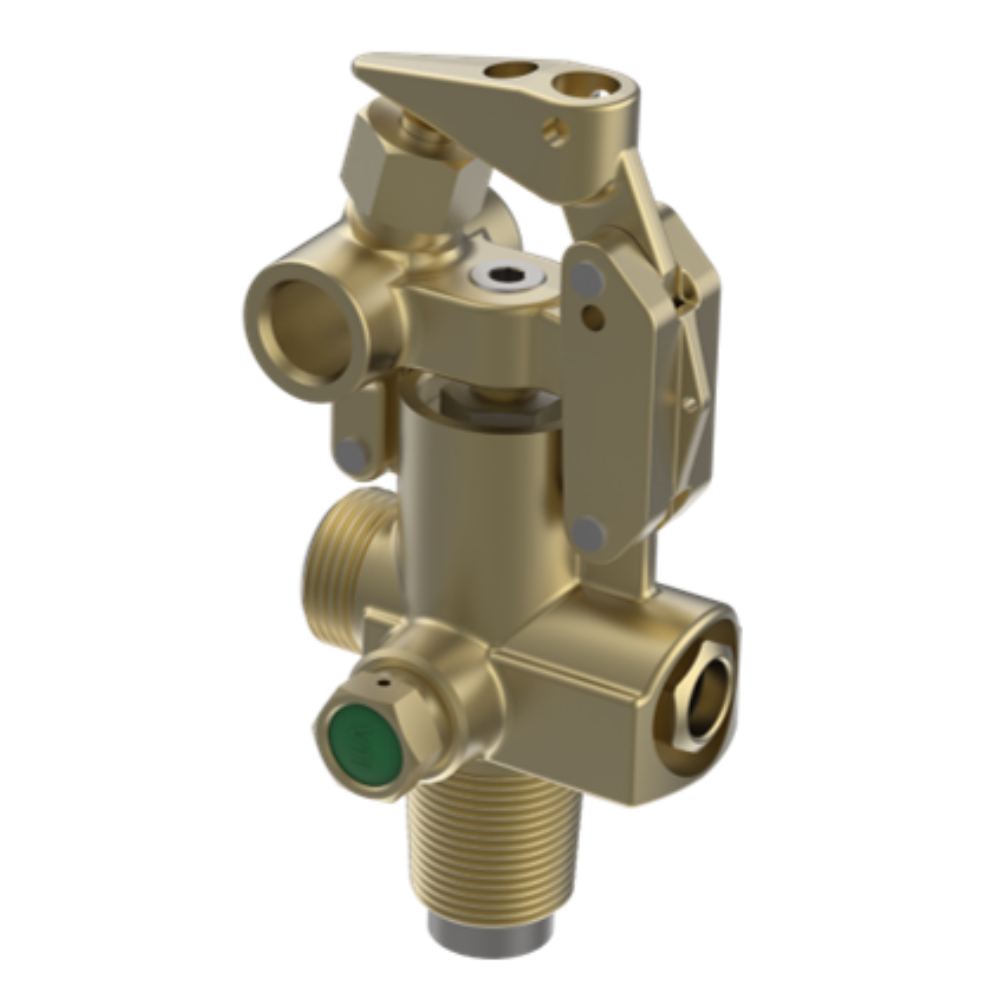

K85-28

  • medium: Novec, FM200, Deugen N, Pulver N2
  • inlet thread: 25E according to ISO 11363-1 or ¾“ NGT, others on request
  • outlet thread: M26x1,5
  • nominal diameter: DN 16
  • working pressure: 125 bar
  • bursting device on customer request
  • dip tube thread: M20x1,25
  • connection pneumatic cylinder: 2 x G3/8“ IG or 2 x 3/8-24UNF IG
  • activation: manual, internal-pneumatic
  • TPED (BAM) approval and VDS /ATR Typ C

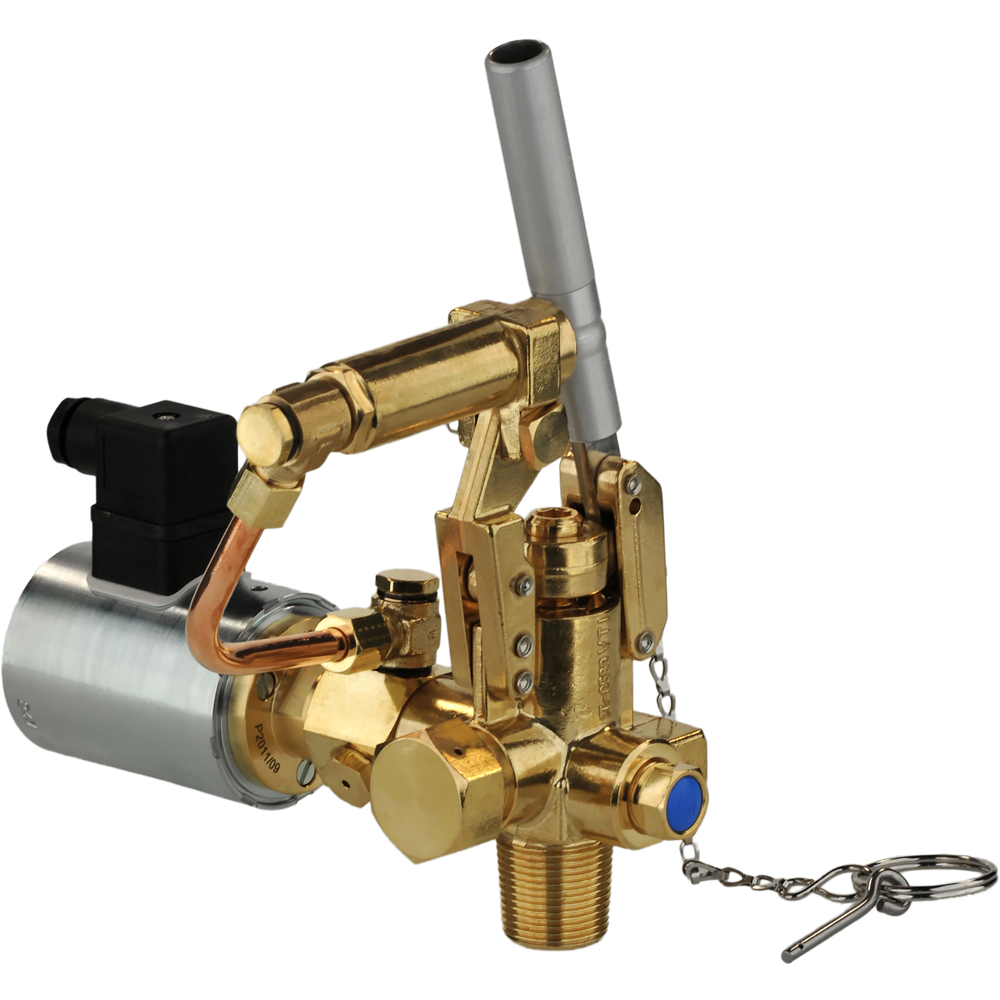

K85-41, K85-42

  • medium: CO2, Ar, Argonite, N2, Inergen (41) oder N2 (42)
  • inlet thread: 25E according to ISO 11363-1, others on request
  • outlet thread: M24 x 1,5 or W24,32x1/14“
  • nominal diameter: DN12
  • working pressure: 200 bar
  • bursting device on customer request
  • optional: non-return valve for connection of pressure switch resp. pressure gauge
  • integrated release cylinder, solenoid unit 24 volt, 18 watt, 100% ED
  • TPED (BAM) approval and VDS /ATR Typ C

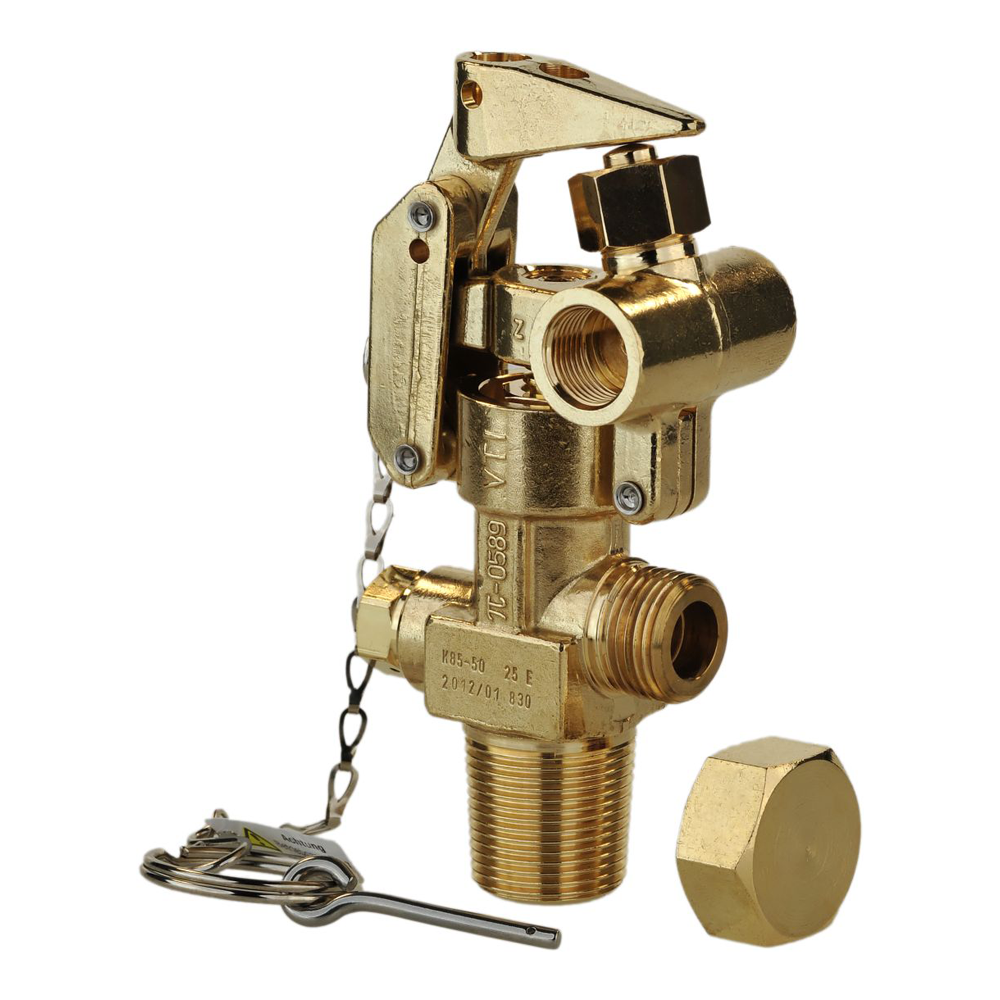

K85-50

  • medium: CO2, Ar, FM200, Novec, Inergen
  • inlet thread: 25E according to ISO 11363-1, others on request
  • outlet thread: W21,8x1/14“
  • nominal diameter: DN 12
  • working pressure: 200 bar
  • bursting device on customer request
  • dip tube thread: M16x1
  • connection pneumatic cylinder: 2 x G3/8“ IG or 2 x 3/8-24UNF IG
  • activation: manual, internal-pneumatic
  • TPED (BAM) and VDS approval / CPR- CE / ATR Typ

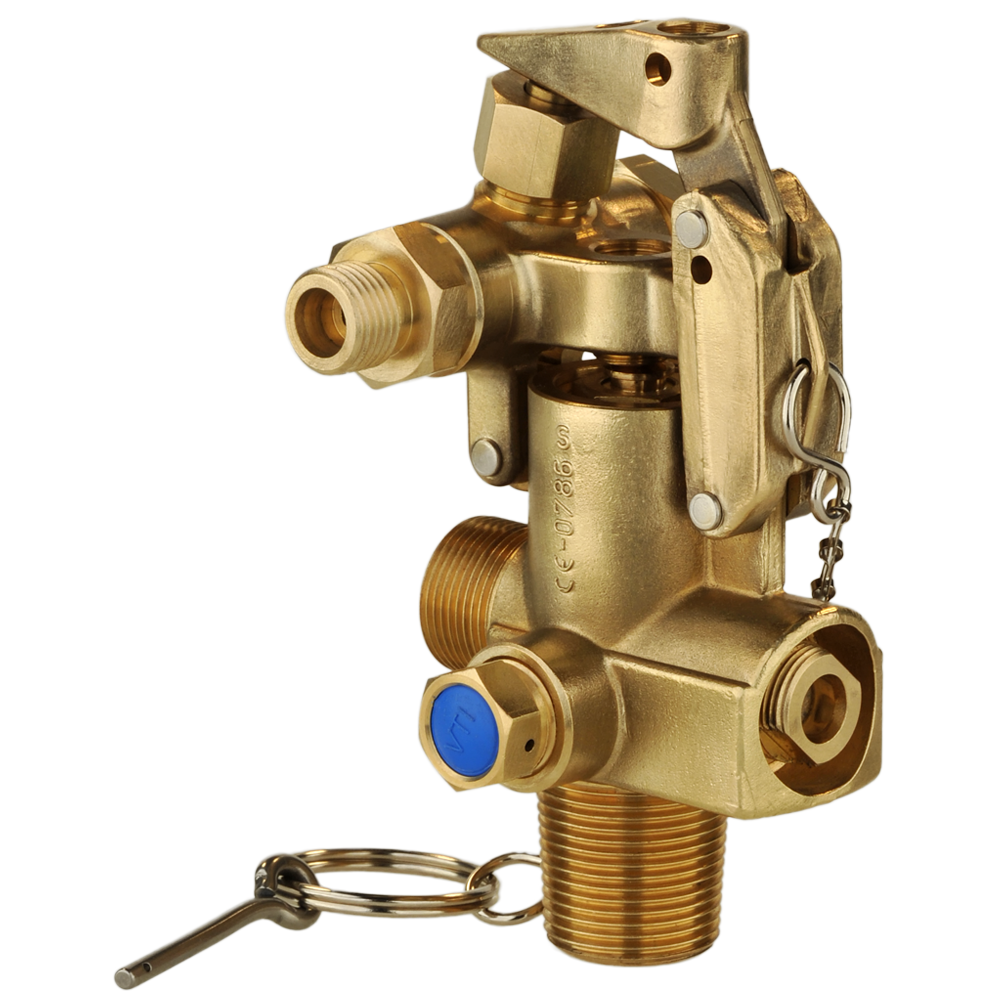

K85-55

  • medium: Ar, Argonite, N2, Inergen
  • inlet thread: 25E according to ISO 11363-1, ¾“ NGT, 1“ NGT, others on request
  • outlet thread: M24 x 1,5
  • nominal diameter: DN 12
  • working pressure 300 bar
  • bursting device on customer request
  • connection pneumatic cylinder: 2 x G3/8“ IG or 2 x 3/8-24UNF IG
  • optional: non-return valve for connection of pressure switch resp. pressure gauge or electricopneumatical release unit
  • activation: manual, internal-pneumatic
  • TPED (BAM) and VDS approval / CPR- CE / ATR Typ

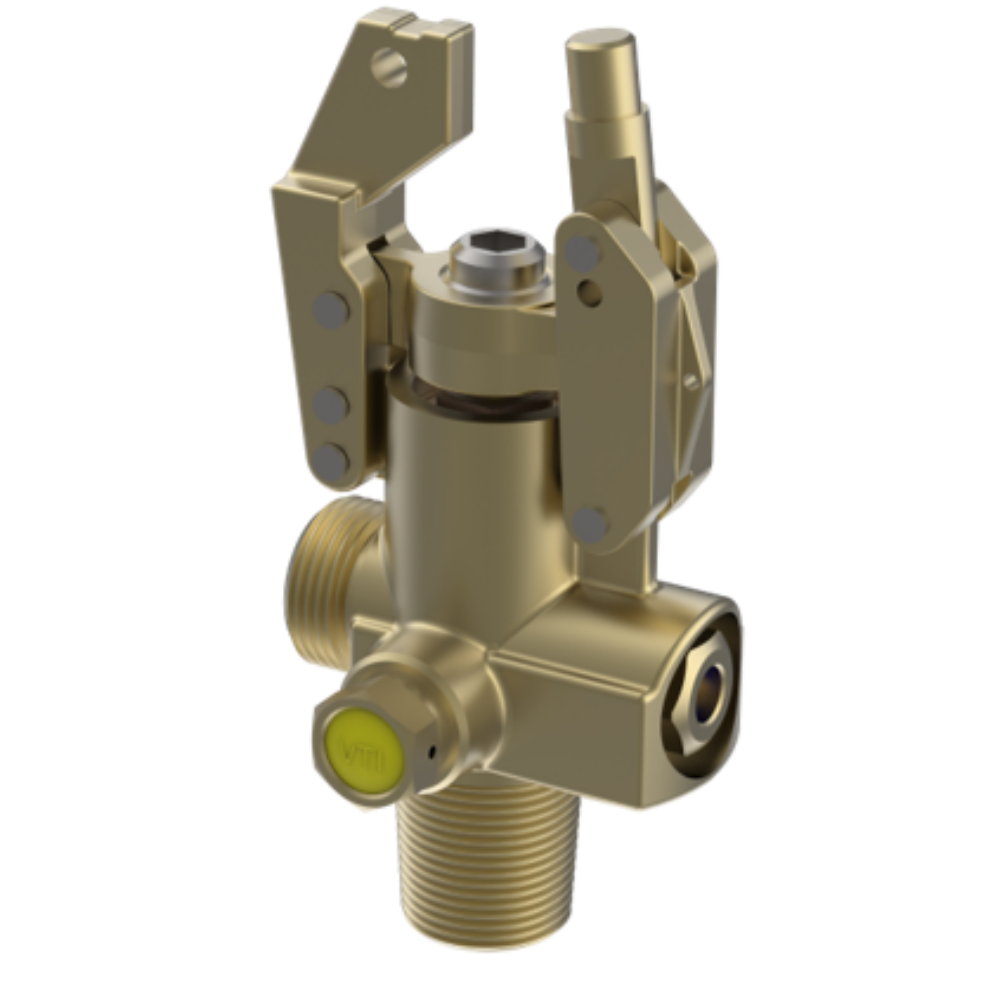

K85-60, K85-62, K85-63

  • medium: CO2, Ar, Inergen, FM200, Novec 1230
  • inlet thread: 25E according to ISO 11363-1, others on request
  • outlet thread: M24x1,5 (60 + 63), W21,8x1/14“ (62)
  • nominal diameter: DN 12
  • working pressure: 200 bar (60 + 62), 300 bar (63)
  • bursting device on customer request
  • dip tube thread: M16x1
  • connection pneumatic cylinder: G3/8“ IG
  • optional: non-return valve for connection of pressure switch resp. pressure gauge or electricopneumatical release unit
  • optional: Atex version
  • activation: manual, external-pneumatic (pneumatic cylinder)
  • TPED (BAM) and VDS approval / CPR- CE / ATR Typ C

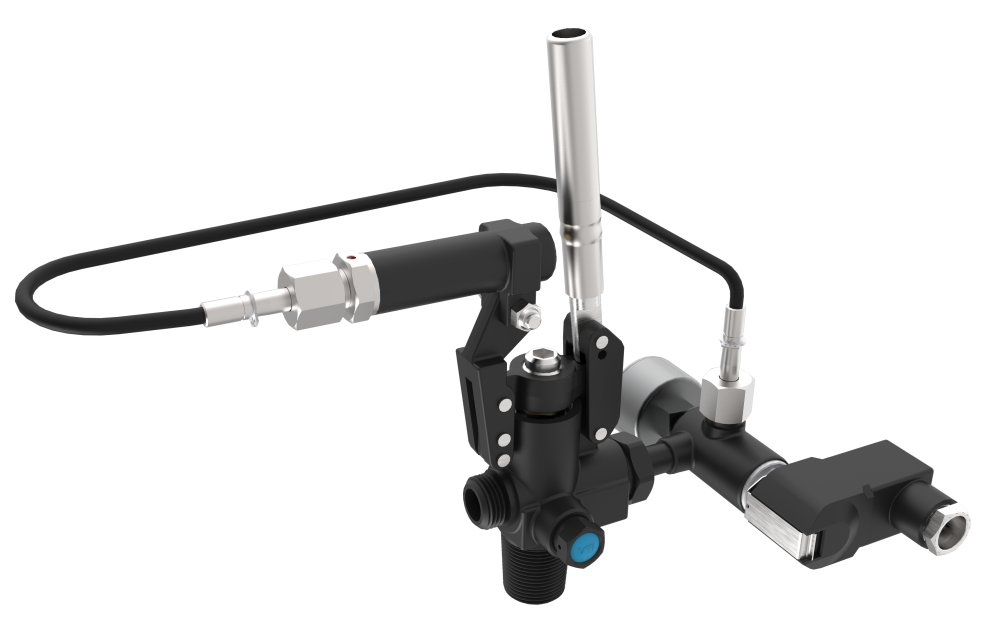

K85-62 Offshore (black version)

  • medium: CO2, Ar, Inergen, FM200, Novec 1230
  • components made of brass with special coating or stainless steel
  • inlet thread: 25E according to ISO 11363-1, others on request
  • outlet thread: W21,8x1/14“
  • nominal diameter: DN 12
  • working pressure: 200 bar
  • bursting device on customer request
  • dip tube thread: M16x1
  • connection pneumatic cylinder: G3/8“ IG
  • optional: non-return valve for connection of pressure switch resp. pressure gauge or electricopneumatical release unit
  • activation: manual, external-pneumatic (pneumatic cylinder)
  • TPED (BAM) and VDS approval / CPR- CE / ATR Typ C

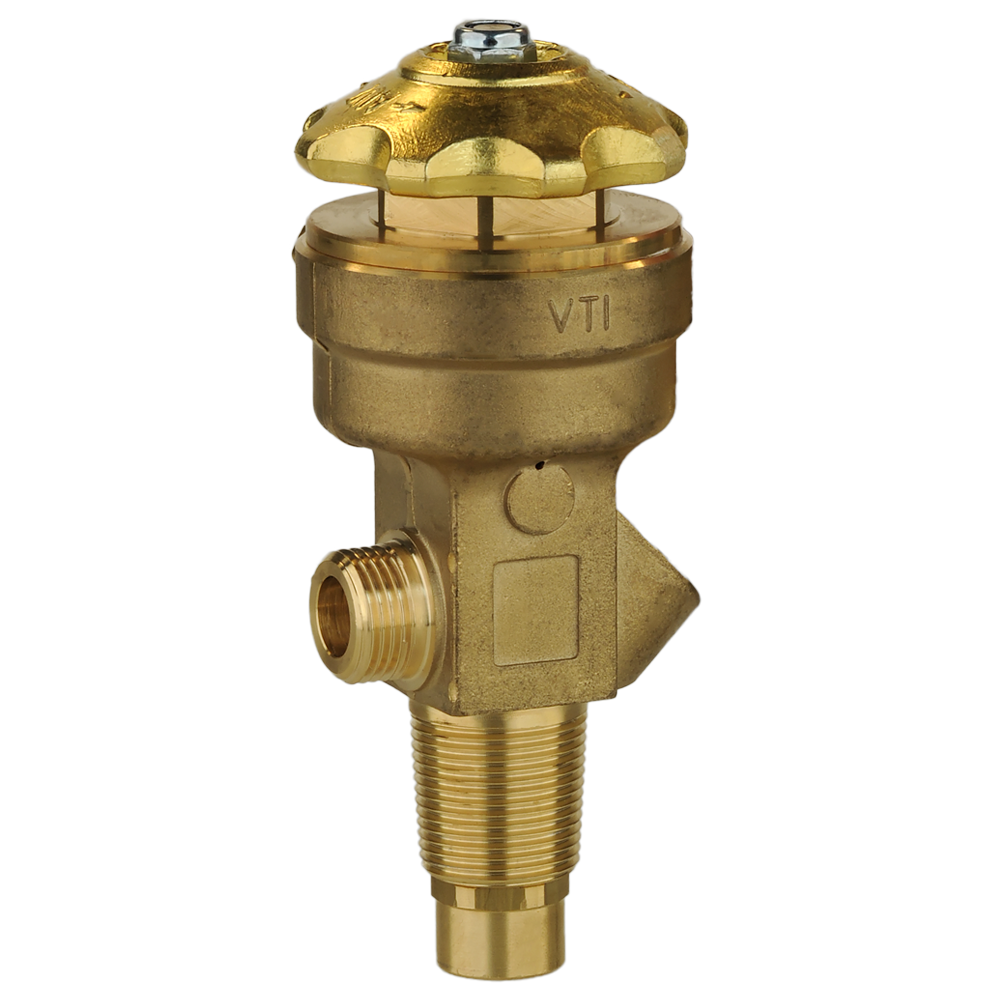

K633-2-8, 10, 11

  • medium: CO2, Argon, Helium, Krypton, Inergen, Druckluft
    inlet thread: 25E according to ISO 11363-1
  • outlet thread: W21,8x1/14“ or W24,32x1/14“
  • nominal diameter: DN 6 or DN 9
  • working pressure: 200 bar
  • bursting device on customer request
  • dip tube thread: M16x1 or M20x1,5
  • connection pneumatic cylinder: G1/8“ IG
  • optional: non-return valve for connection of pressure switch resp. pressure gauge
  • activation: manual, internal-pneumatic
  • TPED (BAM) approval / ATR Typ C

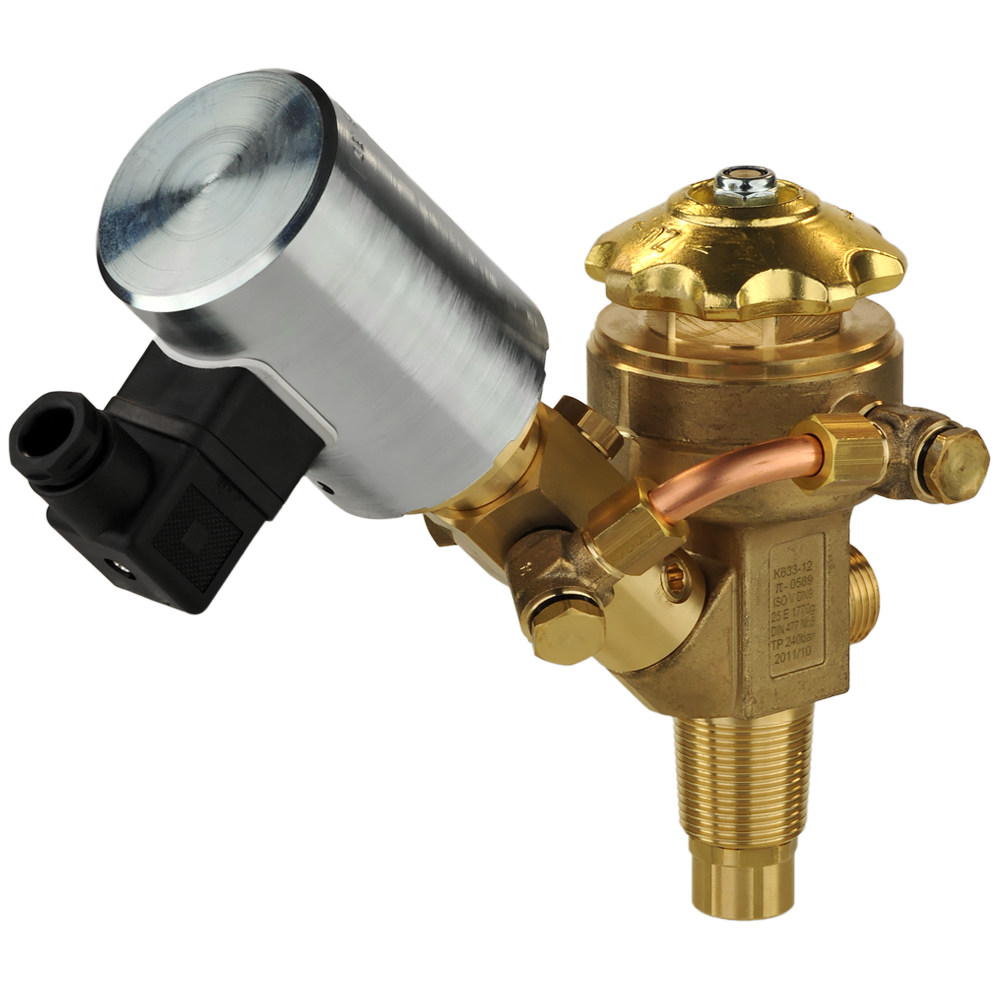

K633-9, 12 with solenoid unit

  • medium: CO2, Argon, N2, Inergen, Druckluft
  • inlet thread: 25E according to ISO 11363-1
  • outlet htread: W21,8x1/14“
  • nominal diameter: DN 9
  • working pressure: 200 bar
  • bursting device on customer request
  • dip tube thread: M20x1,5
  • optional: non-return valve for connection of pressure switch resp. pressure gauge
  • activation: manual, internal-pneumatic, electrical (with solenoid unit 24V, 18Watt, 100% ED)
  • TPED (BAM) approval / ATR Typ C
